How I Use ActivitySmith While Deploying ActivitySmith

I am a huge fan of dogfooding. If I build developer tooling, I want to use it in my own day-to-day workflows, deployments, and release checks in production.

Deployments are one of the biggest ways I use ActivitySmith: push to main, a GitHub Actions workflow runs in the background, and I get step-by-step progress updates on my iPhone lock screen using iOS Live Activities.

The Problem I Kept Running Into

My deployments are automated with GitHub Actions and are fairly simple, but they still have multiple steps and usually take at least a minute. In larger projects and teams, deployment runs often take much longer.

Before ActivitySmith, that meant opening GitHub, finding the repo, going to Actions, opening the current run, and watching it progress until it finished so I knew when I could try it out.

That workflow was annoying. With ActivitySmith, the progress streams directly to my iPhone lock screen in real time, and I know exactly when a release is finished and ready to try.

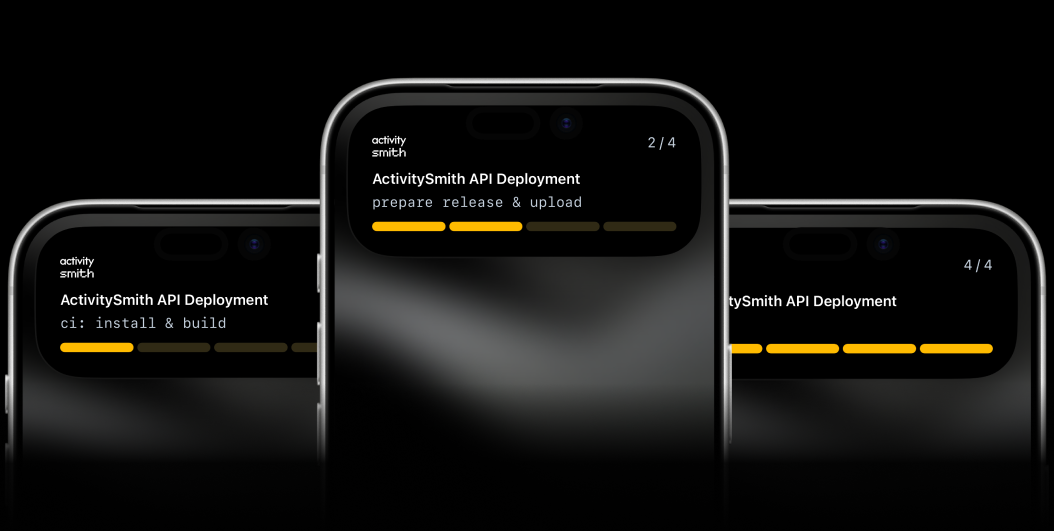

ActivitySmith deployment Live Activity on iPhone showing a completed API deployment

What ActivitySmith Does in My Deployments

For every production deployment, ActivitySmith:

Starts a Live Activity at the beginning of the workflow.
Updates each phase of deployment progress in real time.
Ends the activity when production is fully switched.

This is not limited to one backend service. I use the same pattern across various backend services, frontend apps, landing pages, and other projects.

My GitHub Actions Workflow

Here is the workflow I use in production:

1
name: Deploy API to Production
2
3
on:
4
  push:
5
    branches: [main]
6
7
jobs:
8
  deploy:
9
    runs-on: ubuntu-latest
10
    steps:
11
      - uses: actions/checkout@v3
12
      - uses: actions/setup-node@v4
13
        with:
14
          node-version:node-version:node-version: 24
15
          cache: npm
16
17
      - name: Start live activity
18
        id: start_activity
19
        continue-on-error: true
20
        uses: ActivitySmithHQ/activitysmith-github-action@v1
21
        with:
22
          action: start_live_activity
23
          api-key: ${{ secrets.ACTIVITYSMITH_API_KEY }}
24
          payload: |
25
            content_state:
26
              title: "API Deployment"
27
              subtitle: "ci: install & build"
28
              number_of_steps: 4
29
              current_step: 1
30
              type: "segmented_progress"
31
              color: "yellow"
32
33
      - name: Build
34
        run: |
35
          npm ci
36
          npm run build
37
38
      - name: Update live activity
39
        if: ${{ steps.start_activity.outputs.live_activity_id != '' }}
40
        continue-on-error: true
41
        uses: ActivitySmithHQ/activitysmith-github-action@v1
42
        with:
43
          action: update_live_activity
44
          api-key: ${{ secrets.ACTIVITYSMITH_API_KEY }}
45
          live-activity-id: ${{ steps.start_activity.outputs.live_activity_id }}
46
          payload: |
47
            content_state:
48
              title: "ActivitySmith API Deployment"
49
              subtitle: "prepare release & upload"
50
              current_step: 2
51
52
      - name: Set release id
53
        run: |
54
          echo "RELEASE_ID=$(date +%Y%m%d%H%M%S)" >> $GITHUB_ENV
55
56
      - name: Prepare release dir on remote server
57
        run: |
58
          ssh -o StrictHostKeyChecking=no [email protected] "RELEASE_ID=${RELEASE_ID} bash -s" << 'EOF'
59
            set -euo pipefail
60
            BASE="/srv/apps/activitysmith-api"
61
            NEW="$BASE/releases/$RELEASE_ID"
62
            mkdir -p "$BASE/releases"
63
            rm -rf "$NEW"
64
            mkdir -p "$NEW"
65
          EOF
66
67
      - name: Upload built artifacts to remote server
68
        run: |
69
          # rsync release artifacts to the new server release directory
70
71
      - name: Update live activity
72
        if: ${{ steps.start_activity.outputs.live_activity_id != '' }}
73
        continue-on-error: true
74
        uses: ActivitySmithHQ/activitysmith-github-action@v1
75
        with:
76
          action: update_live_activity
77
          api-key: ${{ secrets.ACTIVITYSMITH_API_KEY }}
78
          live-activity-id: ${{ steps.start_activity.outputs.live_activity_id }}
79
          payload: |
80
            content_state:
81
              title: "ActivitySmith API Deployment"
82
              subtitle: "prod install & reload"
83
              current_step: 3
84
85
      - name: Install prod deps, switch release, and reload
86
        run: |
87
          # Remote deployment script:
88
          # - Install production dependencies in the new release directory
89
          # - Atomically switch current symlink to the new release
90
          # - Gracefully reload PM2 cluster behind nginx
91
          # - Prune old releases while keeping rollback-safe history
92
93
      - name: End live activity
94
        if: ${{ steps.start_activity.outputs.live_activity_id != '' }}
95
        continue-on-error: true
96
        uses: ActivitySmithHQ/activitysmith-github-action@v1
97
        with:
98
          action: end_live_activity
99
          api-key: ${{ secrets.ACTIVITYSMITH_API_KEY }}
100
          live-activity-id: ${{ steps.start_activity.outputs.live_activity_id }}
101
          payload: |
102
            content_state:
103
              title: "ActivitySmith API Deployment"
104
              subtitle: "done"
105
              current_step: 4

Push Notification

ActivitySmith push notification on iPhone showing deployment status

You can also use ActivitySmith to send push notifications to your iOS devices.

1
- name: Send deployment complete push notification
2
  uses: ActivitySmithHQ/activitysmith-github-action@v1
3
  with:
4
    action: send_push_notification
5
    api-key: ${{ secrets.ACTIVITYSMITH_API_KEY }}
6
    payload: |
7
      title: "Build Failed 🚨"
8
      message: "CI pipeline failed on main branch"

Why Zero Downtime Is Non-Negotiable

ActivitySmith is API infrastructure. Users expect near-constant availability.

Before I implemented zero-downtime deployments, the Live Activity lifecycle would break during release restarts because the API went down mid-deploy, so updates could not be delivered.

Deployments now run behind nginx with PM2 in cluster mode using zero-downtime reloads (worker A, then worker B), so traffic stays up and Live Activity updates continue reliably.

More Than One Project

This pattern now powers every deployment workflow I care about, not just ActivitySmith core services. Once wired in, every release gives real-time confidence without babysitting logs.

And outside GitHub Actions, the same approach works from scripts, cron jobs, workers, agents and more. Basically any backend. Zapier and n8n integrations are complete and currently pending marketplace approval.

Try It on Your Next Deployment

Read Documentation: activitysmith.com/docs
SDKs: activitysmith.com/docs/sdks/overview
GitHub Action: ActivitySmith GitHub Marketplace Action
